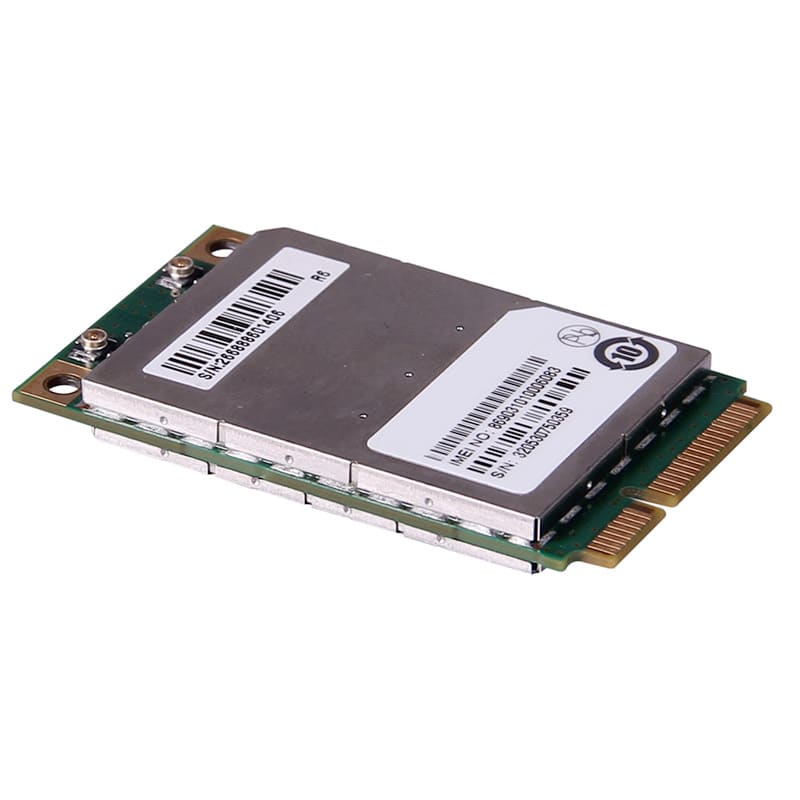

Zycoo UMTS - Module de UMTS (LTE) 1 puce GSM pour connection data a traver le reseau GSM au Zycoo CoVox U20, U50 et U100
Chargement...
Description
Fiche Technique
The GSM module supports CooVox-U2 Ip Phone Systemfor GSM connection. Each port has one LED(Light-Emitting
Diodes), which is assembled on the mainboard.
The Red LED indicates port status:
ï Solid Red= Module loading successful
ï Blink Red= Channel Ringing
If the LED is off, the GSM module is loading failure.
The Red LED indicates port status:
ï Solid Red= TE Model
The Green LED indicates port status:
ï Solid Green= NT Model
If the LED is off, the module is loading failure.
SIM900 key features
|
Feature |
Implementation |
|
Power supply |
Single supply voltage 3.4V-4.5V |
|
Power saving |
Typical power consumption is SLEEP mode is 1.5mA(BS-PA-MFRMS=5) |
|
Frequency Bands |
SIM900 quad-band:GSM850, EGSM 900, DCS 1800, PCS 1900. The SIM900 can search the 4 frequency bands automatically. Compliant to GSM Phase 2/2+ |
|
GSM class |
Small MS |
|
Transmitting power |
Class 4(2W) at GSM 850 and EGSM 900 Class 1(1W) at DCS 1800 and PCS 1900 |
|
Temperature range |
Normal operation: -30-+80 degrees Centigrade |
| Type de Port | GSM |
| Nombre de Ports | 1 |
| Utilisation | Données |
| Compatibilité | Autre |
| Poids | |
| Dimensions |
-
