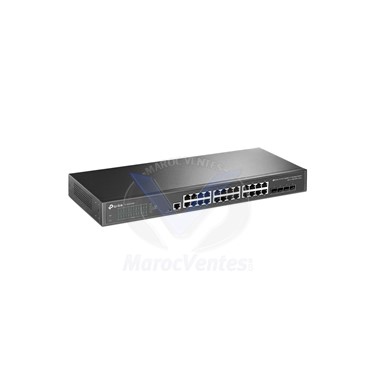

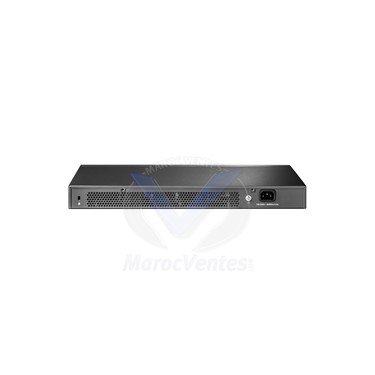

TP-LINK T-SG3428X

Menu
  • TP-LINK
    TP-LINK

    SWITCH ADMINISTRABLE JetStream L2+ 24 Ports Gigabit avec 4 SFP+ 10GEGéré L2+/L3

    En Stock

    Evaluer ce produit.
    SWITCH ADMINISTRABLE JetStream L2+ 24 Ports Gigabit avec 4 SFP+ 10GEGéré L2+/L3

    5 280,00 Dh TTC

    4 080,00 Dh TTC

    3 400,00 Dh HT

    Description du Produit


    Switch géré Tplink JetStream™ 24 ports Gigabit L2+ avec 4 emplacements SFP+ 10GEPORT : 24 × ports Gigabit RJ45, 4 × emplacements SFP+ 10G, port de console RJ45/Micro-USBSPEC : boîtier en acier montable en rack 1U de 19 poucesCARACTÉRISTIQUE : intégration avec Omada Contrôleur SDN, routage statique, OAM, sFlow, DDM, VLAN 802.1Q, QinQ, STP/RST P/MSTP, surveillance IGMP, QoS 802.1p/DSCP, ACL, 802.1x, authentification Radius/Tacacs+, LACP, CLI, SNMP, Double image/configuration, IPv6


    Liaison montante ultra rapide 10G: 4x emplacements SFP+ 10 Gbps permettent une connectivité à large bande passante et une capacité de commutation non bloquante.
    Débit Gigabit: 24 ports Gigabit RJ45 offrent des connexions fiables et à haute vitesse vers d'autres commutateurs et appareils.
    Intégré dans Omada SDN : Zero-Touch Provisioning (ZTP) * , gestion centralisée du cloud et surveillance intelligente.
    Administration centralisée : accès au Cloud et application Omada pour plus de commodité et une gestion facile.
    Routage statique : aide à acheminer le trafic interne pour une utilisation plus efficace des ressources réseau.
    Stratégies de sécurité robustes : liaison IP-MAC-port, ACL, sécurité des ports, DoS Defend, contrôle des tempêtes, surveillance DHCP, 802.1X, authentification Radius, etc.
    Optimisez les applications vocales et vidéo : QoS L2 / L3 / L4 et surveillance IGMP.
    Gestion autonome : Web, CLI (port de console, Telnet, SSH), SNMP, RMON et Dual Image offrent de puissantes capacités de gestion
    Garantie 1 an.


    Caractéristiques Techniques


    CARACTERISTIQUES MATERIELLES
    Interface • 24x 10/100/1000 Mbps RJ45 Ports
    • 4x 10G SFP+ Slots
    • 1x RJ45 Console Port
    • 1x Micro-USB Console Port
    Nombre de ventilateurs Fanless
    Alimentation 100-240 V AC~50/60 Hz
    Dimensions (LxPxH) 440 x 180 x 44 mm
    Montage Rack Mountable
    Consommation maximale 23.6 W (110V/60Hz)
    Max dissipation thermique 80.353 BTU/h (110 V/60 Hz)
    Performances
    Capacité de commutation 128 Gbps
    Taux de transfert de paquets 95.23 Mpps
    Tableau d'adresses MAC 16 K
    Mémoire tampon des paquets 12 Mbit
    Trame Géante 9 KB
    CARACTERISTIQUES LOGICIELLES
    Qualité de Service QoS
    • 8 priority queues
    • 802.1p CoS/DSCP priority
    • Queue scheduling
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    - SP+WRR
    • Bandwidth Control
    - Port/Flow based Rating Limiting
    • Smoother Performance
    • Action for Flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    Fonctions N2 et N2+ • Link Aggregation
    - static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups, containing 8 ports per group
    • Spanning Tree Protocol
    - 802.1d STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter, Root Protect
    • Loopback Detection
    - Port based
    - VLAN based
    • Flow Control
    - 802.3x Flow Control
    - HOL Blocking Prevention
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Tx/Rx/Both
    Multidiffusion N2 • IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
    - IGMP Snooping Querier
    - IGMP Authentication
    • IGMP Authentication
    • MLD Snooping
    - MLD v1/v2 Snooping
    - Fast Leave
    - MLD Snooping Querier
    - Static Group Config
    - Limited IP Multicast
    • MVR
    • Multicast Filtering: 256 profiles and 16 entries per profile
    VLAN • VLAN Group
    - Max 4K VLAN Groups
    • 802.1Q Tagged VLAN
    • MAC VLAN: 7 Entries
    • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
    • Private VLAN
    • GVRP
    • VLAN VPN (QinQ)
    - Port-Based QinQ
    - Selective QinQ
    • Voice VLAN
    Liste de contrôle d'accès • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    -Source IP
    - Destination IP
    - Fragment
    - IP Protocol
    - TCP Flag
    - TCP/UDP Port
    - DSCP/IP TOS
    - User Priority
    • Combined ACL
    • Packet Content ACL
    • IPv6 ACL
    • Policy
    - Mirroring
    - Redirect
    - Rate Limit
    - QoS Remark
    • ACL apply to Port/VLAN
    Sécurité • IP-MAC-Port Binding
    - 512 Entries
    - DHCP Snooping
    - ARP Inspection
    - IPv4 Source Guard: 100 Entries
    • IPv6-MAC-Port Binding
    - 512 Entries
    - DHCPv6 Snooping
    - ND Detection
    - IPv6 Source Guard: 100 Entries
    • DoS Defend
    • Static/Dynamic Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    • 802.1X
    - Port base authentication
    - Mac base authentication
    - VLAN Assignment
    - MAB
    - Guest VLAN
    - Support Radius authentication andaccountability
    • AAA (including TACACS+)
    • Port Isolation
    • Secure web management through HTTPS with SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    • IP/Port/MAC based access control
    IPv6 • IPv6 Dual IPv4/IPv6
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 ACL
    • IPv6 Interface
    • Static IPv6 Routing
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP) version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet (v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    Fonctions N3 • 16 IPv4/IPv6 Interfaces
    • Static Routing
    - 48 static routes
    • Static ARP
    - 128 Static Entries
    • Proxy ARP
    • Gratuitous ARP
    • DHCP Server
    • DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    Administration
    • Web-based GUI
    • Command Line Interface (CLI) through the console port, telnet
    • SNMP v1/v2c/v3
    - Trap/Inform
    - RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • 802.1ab LLDP/LLDP-MED
    • DHCP AutoInstall
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • Password Recovery
    • SNTP
    • System Log
    Caractéristiques avancées • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
    • Automatic Device Discovery
    • Batch Configuration
    • Batch Firmware Upgrading
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    • ZTP (Zero-Touch Provisioning)*
    MIBs • MIB II (RFC1213)
    • Interface MIB (RFC2233)
    • Ethernet Interface MIB (RFC1643)
    • Bridge MIB (RFC1493)
    • P/Q-Bridge MIB (RFC2674)
    • RMON MIB (RFC2819)
    • RMON2 MIB (RFC2021)
    • Radius Accounting Client MIB (RFC2620)
    • Radius Authentication Client MIB (RFC2618)
    • Remote Ping, Traceroute MIB (RFC2925)
    • Support TP-Link private MIB
    Administration
    Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
    Administration Centralisée • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Accès Cloud Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
    Fonctions d'administration • Web-based GUI
    • Command Line Interface (CLI) through the console port, telnet
    • SNMP v1/v2c/v3
    - Trap/Inform
    - RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • 802.1ab LLDP/LLDP-MED
    • DHCP AutoInstall
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • Password Recovery
    • SNTP
    • System Log
    Autres
    Certification CE, FCC, RoHS
    Contenu de l'emballage
    • TL-SG3428X Switch
    • Power Cord
    • Quick Installation Guide
    • Rackmount Kit
    • Rubber Feet
    Système requis Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
    Environnement
    • Operating Temperature: 0–45 °c
    • Storage Temperature: -40–70 °c
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
